Part Number: STD720-E1AS1AS-1-0-AHC-11SA-31A6-TP,FX,F1-0000

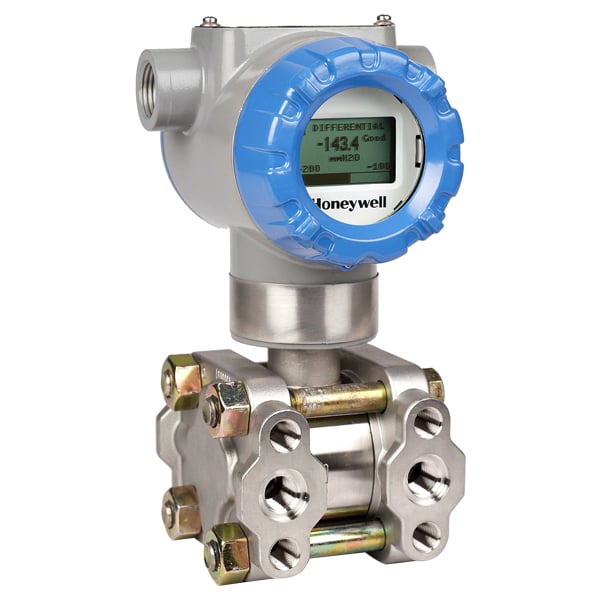

Model: STD700 Differential Pressure Transmitter
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STD720 | Differential Pressure Transmitter |
| Process Wetted Heads & Diaphragm Materials | E | Process Head Material: 316 Stainless Steel Diaphragm Material: 316L Stainless Steel |
| Fill Fluid | 1 | Silicone Oil 200 |
| Process Connection | A | None None (1/4\’ NPTF female thread Std) |
| Bolt/Materials | S | 316 SS |
| Vent/Drain Type/Location | 1 | Head Type: Single Ended Vent Type: None Location: None Vent Material: None |
| Gasket Material | A | Teflon® or PTFE (Glass Filled) |
| Static Pressure | S | Standard Static Pressure – 4500 psig (315 bar) |
| Head/Connect Orientation | 1 | Standard, High Side Left, Low Side Right(1) / Std Head Orientation |
| Approvals | 0 | No Approvals Required |
| Electronic Housing Material & Connection Type | A | Material: Polyester Powder Coated Aluminum Connection: 1/2 NPT Lighting Protection: None |
| Output/Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | C | Indicator: Basic Ext Zero, Span & Config Buttons: Yes Languages: English |
| Application Software | 1 | Diagnostics: Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High> 21.0mAdc High & Low Output Limits:(1) Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | S | Factory Standard |
| Accuracy and Calibration | A | Accuracy: Standard Calibrated Range: Factory Std Calibration Qty: Single Calibration |
| Mounting Bracket | 3 | Bracket Type: Angle Bracket Material: 316 SS |
| Customer Tag | 1 | One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) |
| Unassembled Conduit Plugs & Adapters | A6 | 1/2 NPT 316 SS Certified Conduit Plug |
| Certifications & Warranty | TP FX F1 |
Over-Pressure Leak Test Certificate (1.5X MAWP) (F3392) EN10204 Type 3.1 Material Traceability (FC33341) Calibration Test Report & Certificate of Conformance (F3399) |
| Factory | 0000 | Factory Identification |
- Left side/Right side as viewed from the customer connection perspective
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 6 Kg
