Part Number: STD720-E1AS1AS-1-C-AHB-11S-3

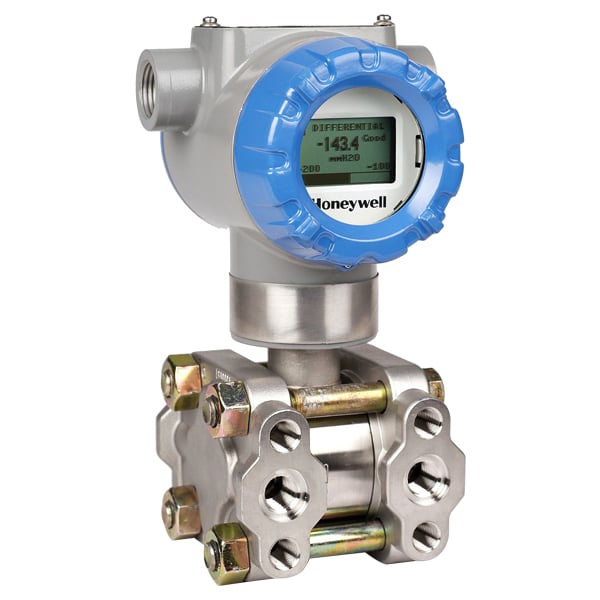

Model: STD700 Differential Pressure Transmitter
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STD720 | Differential Pressure Transmitter |
| Process Wetted Heads & Diaphragm Materials | E | Process Head Material: 316 Stainless Steel 316L Stainless Steel |
| Fill Fluid | 1 | Silicone Oil 200 |
| Process Connection | A | None None (1/4\’ NPTF female thread Std) |
| Bolt/Materials | S | 316 SS |
| Vent/Drain Type/Location | 1 | Head Type: Single Ended Vent Type: None Location: None Vent Material: None |
| Gasket Material | A | Teflon® or PTFE (Glass Filled) |
| Static Pressure | S | Standard Static Pressure – 4500 psig (315 bar) |
| Head/Connect Orientation | 1 | Standard, High Side Left, Low Side Right(1) / Std Head Orientation |
| Approvals | C | ATEX Explosion proof, Intrinsically Safe & Non-incendive |
| Electronic Housing Material & Connection Type | A | Material: Polyster Powder Coated Aluminum Connection: 1/2 NPT Lighting Protection: None |
| Output/Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | B | Indicator: Basic Ext Zero, Span & Config Buttons: None Languages: English |
| Application Software | 1 | Diagnostics: Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High> 21.0mAdc High & Low Output Limits:(2) Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | S | Factory Standard |
| Mounting Bracket | 3 | Bracket Type: Angle Bracket Material: 316 SS |
- Left side/Right side as view ed from the customer connection perspective
- NAMUR Output Limits 3.8 – 20.5mAdc can be configured by the customer or select custom configuration Table Vc
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 6 Kg
