Part Number: STD720-F1AN2AS-1-I-AHB-11C-B-01A0-F7,F1-0000

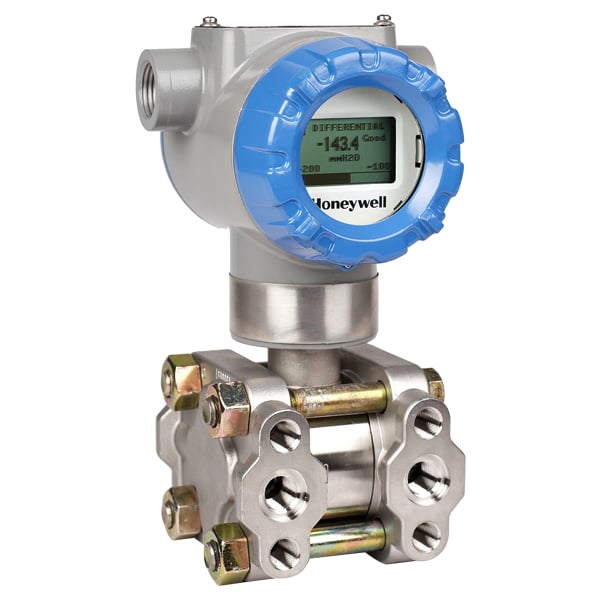

Model: STD700 Differential Pressure Transmitter
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STD720 | Differential Pressure Transmitter |
| Process Wetted Heads & Diaphragm Materials | F | Process Head Material: 316 Stainless Steel Diaphragm Material: Hastelloy C-276 |
| Fill Fluid | 1 | Silicone Oil 200 |
| Process Connection | A | None None (1/4\’ NPTF female thread Std) |
| Bolt/Materials | N | Grade 660 (NACE A286) with NACE 304 SS Nuts |
| Vent/Drain Type/Location | 2 | Head Type: Single Ended Vent Type: Standard Vent Location: Side Vent Material: Matches Head Material(1) |
| Gasket Material | A | Teflon® or PTFE (Glass Filled) |
| Static Pressure | S | Standard Static Pressure – 4500 psig (315 bar) |
| Head/Connect Orientation | 1 | Standard, High Side Left, Low Side Right(2) / Std Head Orientation |
| Approvals | I | EAC Customs Union (Russia,Belarus,Kazakhstan) Ex Approval Flame proof, Intrinsically Safe |
| Electronic Housing Material & Connection Type | A | Material: Polyester Powder Coated Aluminum Connection: 1/2 NPT Lighting Protection: None |
| Output/Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | B | Indicator: Basic Ext Zero, Span & Config Buttons: None Languages: English |
| Application Software | 1 | Diagnostics: Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High> 21.0mAdc High & Low Output Limits:(2) Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | C | Custom Configuration (Unit Data Required from customer) |
| Accuracy and Calibration | B | Accuracy: Standard Calibrated Range: Custom (Unit Data Required) Calibration Qty: Single Calibration |
| Mounting Bracket | 0 | Bracket Type: None Material: None |
| Customer Tag | 1 | One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) |
| Unassembled Conduit Plugs & Adapters | A0 | No Conduit Plugs or Adapters Required |
| Certifications & Warranty | F7 F1 |
NACE MR0175; MR0103; ISO15156 (FC33339) Process wetted and non-wetted parts Calibration Test Report & Certificate of Conformance (F3399) |
| Factory | 0000 | Factory Identification |
- Except Carbon Steel Heads shall use 316SS Vent/Drain, Plugs & Adapters when required
- Left side/Right side as viewed from the customer connection perspective
- Estimated Lead Time: 12 – 16 Weeks
- Shipping Weight: 6 Kg
