Part Number: STD730-E1AS1CS-1-C-AHS-12C-B-00A0-00-0000

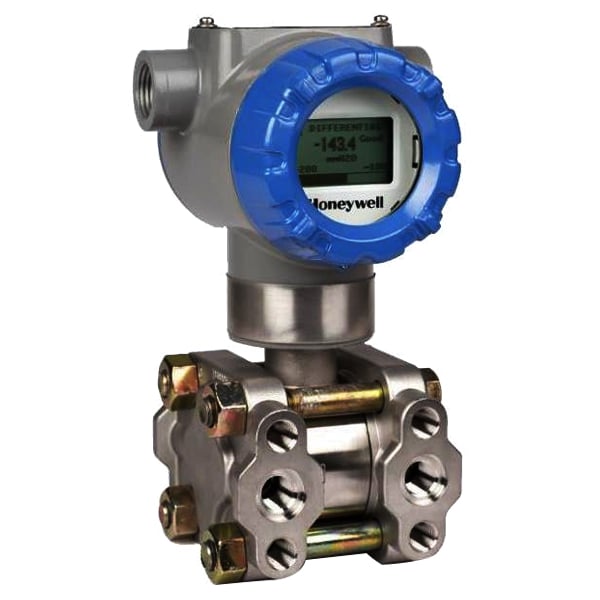

Model: STD700 Differential Pressure Transmitter
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STD730 | Differential Pressure Transmitter |
| Process Wetted Heads & Diaphragm Materials | E | Process Head Material: 316 Stainless Steel Diaphragm Material: 316 Stainless Steel |
| Fill Fluid | 1 | Silicone Oil 200 |
| Process Connection | A | None None (1/4\’ NPTF female thread Std) |
| Bolt/Materials | S | 316 SS |
| Vent/Drain Type/Location | 1 | Head Type: Single Ended Vent Type: None Location: None Vent Material: None |
| Gasket Material | C | Graphite |
| Static Pressure | S | Standard Static Pressure – 4500 psig (315 bar) |
| Head/Connect Orientation | 1 | Standard, High Side Left, Low Side Right(1) / Std Head Orientation |
| Approvals | C | ATEX Explosion proof, Intrinsically Safe & Non-incendive |
| Electronic Housing Material & Connection Type | A | Material: Polyester Powder Coated Aluminum Connection: 1/2 NPT Lighting Protection: None |
| Output/Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | S | |
| Application Software | 1 | Diagnostics: Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 2 | Write Protect: Disabled Fail Mode: Low< 3.6mAdc High & Low Output Limits:(1) Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | C | Custom Configuration (Unit Data Required from customer) |
| Accuracy and Calibration | B | Accuracy: Standard Calibrated Range: Custom (Unit Data Required) Calibration Qty: Single Calibration |
| Mounting Bracket | 0 | Bracket Type: None Material: None |
| Customer Tag | 0 | No customer tag |
| Unassembled Conduit Plugs & Adapters | A0 | No Conduit Plugs or Adapters Required |
| Certifications & Warranty | 00 | None – No additional options |
| Factory | 0000 | Factory Identification |
- Left side/Right side as viewed from the customer connection perspective
- Estimated Lead Time: 12 – 16 Weeks
- Shipping Weight: 8 Kg
