Part Number: STD730-E1HS1AS-1-F-AHS-11S-A-00A0-F5,F1-0000

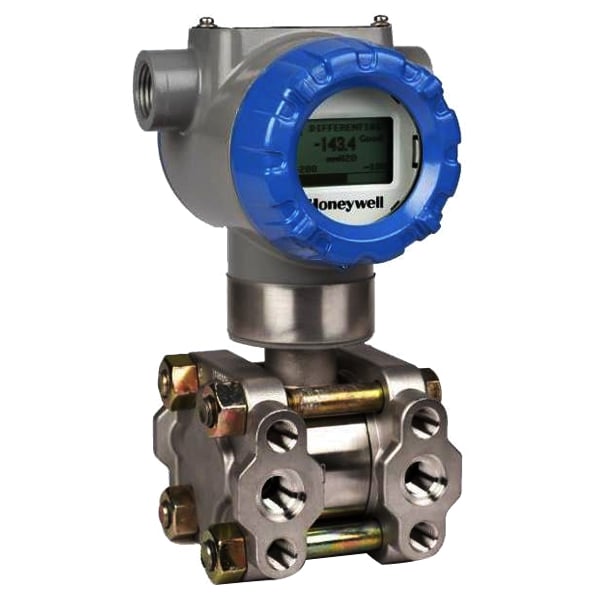

Model: STD700 Differential Pressure Transmitter
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STD730 | Differential Pressure Transmitter |
| Process Wetted Heads & Diaphragm Materials | E | Process Head Material: 316 Stainless Steel Diaphragm Material: 316 Stainless Steel |
| Fill Fluid | 1 | Silicone Oil 200 |
| Process Connection | H | 1/2\’ NPT female Materials to Match Head & Head Bolt Materials Selections(1) |
| Bolt/Materials | S | 316 SS |
| Vent/Drain Type/Location | 1 | Head Type: Single Ended Vent Type: None Location: None Vent Material: None |
| Gasket Material | A | Teflon® or PTFE (Glass Filled) |
| Static Pressure | S | Standard Static Pressure – 4500 psig (315 bar) |
| Head/Connect Orientation | 1 | Standard, High Side Left, Low Side Right(2) / Std Head Orientation |
| Approvals | F | INMETRO Explosion proof, Intrinsically Safe & Non-incendive |
| Electronic Housing Material & Connection Type | A | Material: Polyester Powder Coated Aluminum Connection: 1/2 NPT Lighting Protection: None |
| Output/Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | S | Indicator: Standard (w/internal Zero, Span & Conf Buttons) Ext Zero, Span & Config Buttons: None Languages: EN, RU |
| Application Software | 1 | Diagnostics: Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High> 21.0mAdc High & Low Output Limits:(3) Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | S | Factory Standard |
| Accuracy and Calibration | A | Accuracy: Standard Calibrated Range: Factory Std Calibration Qty: Single Calibration |
| Mounting Bracket | 0 | Bracket Type: None Material: None |
| Customer Tag | 0 | No customer tag |
| Unassembled Conduit Plugs & Adapters | A0 | No Conduit Plugs or Adapters Required |
| Certifications & Warranty | F5 F1 |
Certificate of Origin (F0195) Calibration Test Report & Certificate of Conformance (F3399) |
| Factory | 0000 | Factory Identification |
- Except Carbon Steel Heads shall use 316SS Vent/Drain, Plugs & Adapters when required
- Left side/Right side as viewed from the customer connection perspective
- NAMUR Output Limits 3.8 – 20.5mAdc can be configured by the customer or select custom configuration Table Vc
- Estimated Lead Time: 12 – 16 Weeks
- Shipping Weight: 8 Kg
