Part Number: STD735-E1AS4AS-1- C-DHT-13S-B-30A0-FG,FX,FE,TP-0000

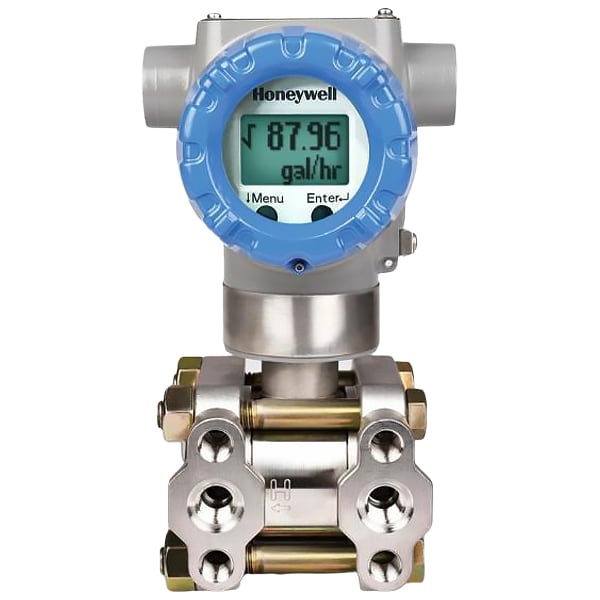

Model: STD735 SmartLine Differential Pressure Transmitter
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Features
- Accuracies up to 0.05% of span
- Stability up to 0.020% of URL per year for 10 years
- Automatic static pressure & temperature compensation
- Rangeability up to 100:1
- Response times as fast as 100ms
- Easy to use and intuitive display capabilities
- Intuitive External Zero, Span and configuration capability
- Comprehensive on-board diagnostic capabilities
- Integral Dual Seal design for highest safety based on ANSI/NFPA 70-202 and ANSI/ISA 12.27.0
- World class overpressure protection
- Full compliance to SIL 2/3 requirements.
- Modular design characteristics
Ordering Information
| Model | STD735 | Differential Pressure Transmitter |
| Process Wetted Heads & Diaphragm Materials | E | Process Head Material: 316 Stainless Steel Diaphragm Material: 316L Stainless Steel |
| Fill Fluid | 1 | Silicone Oil 200 |
| Process Connection | A | None None (1/4\’ NPTF female thread Std) |
| Bolt/Nuts Materials | S | 316 SS |
| Vent/Drain Type/Location | 4 | Head Type: Dual Ended Vent Type: Standard Vent Location: End Vent Material: Matches Head Material(1) |
| Gasket Materials | A | Teflon® or PTFE (Glass Filled) |
| Static Pressure | S | Standard Static Pressure – 4500 psig (315 bar) |
| Head/Connect Orientation | 1 | Standard, High Side Left, Low Side Right(2) / Std Head Orientation |
| Approvals | C | ATEX Explosion proof, Intrinsically Safe & Non-incendive |
| Electronic Housing Material & Connection Type | D | Material: Polyester Powder Coated Aluminum Connection: M20 Lighting Protection: Yes |
| Output/Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | T | Indicator: Standard (w/Internal Zero,Span & Config Buttons) Ext Zero, Span & Config Buttons: Yes Languages: EN, RU |
| Application Software | 1 | Diagnostics: Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 3 | Write Protect: Enabled Fail Mode: High> 21.0mAdc High & Low Output Limits(3): Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | S | Factory Standard |
| Accuracy and Calibration | B | Accuracy: Standard Calibrated Range: Custom (Unit Data Required) Calibration Qty: Single Calibration |
| Mounting Bracket | 3 | Bracket Type: Angle Bracket Material: 316 SS |
| Customer Tag | 0 | No customer tag |
| Unassembled Conduit Plugs & Adapters | A0 | No Conduit Plugs or Adapters Required |
| Certifications & Warranty |
FG FX FE TP |
NACE MR0175; MR0103; ISO15156 Process wetted parts only Marine (DNV,ABS,BV,KR,LR) FMEDA (SIL 2/3) Certification Over-Pressure Leak Test Certificate (1.5X MAWP) |
| Factory | 0000 | Factory Identification |
- Except Carbon Steel Heads shall use 316SS Vent/Drain, Plugs & Adapters when required
- Left side/Right side as viewed from the customer connection perspective
- NAMUR Output Limits 3.8 – 20.5mAdc can be configured by the customer or select custom configuration Table Vc
NOTE: This item is a replacement of STD735-E1AS4AS-1- C-DHT-13S-B-3QA0-FG,FX,Ft,FE,TP-0000
- Estimated Lead Time: 12 – 18 Weeks
- Shipping Weight: 8 Kg
