Part Number: STD820-E1HS4AS-1-A-CFB-15S-A-01A6-F1-0000

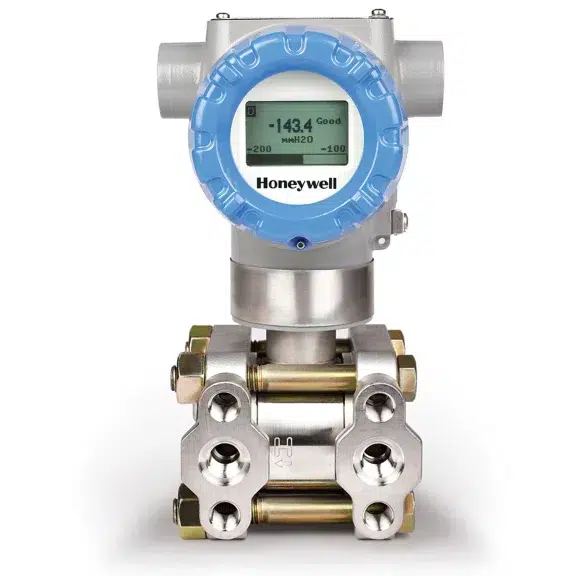

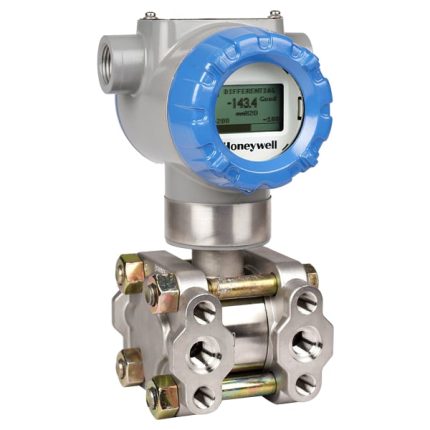

Model: STD820 SmartLine Differential Pressure Transmitter
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STD820 | Differential Pressure Transmitter |
| Process Wetted Heads & Diaphragm Materials | E | Process Head Material:316 Stainless Steel Diaphragm Material: 316L Stainless Steel |
| Fill Fluid | 1 | Silicone Oil 200 |
| Process Connection | H | 1/2\’ NPT female Materials to Match Head & Head Bolt Materials Selections(1) |
| Bolt/Nuts Materials | S | 316 SS |
| Vent/Drain Type/Location | 4 | Head Type: Dual Ended Vent Type: Standard Vent Location: End Vent Material: Matches Head Material(1) |
| Gasket Materials | A | Teflon® or PTFE (Glass Filled) |
| Static Pressure | S | Standard Static Pressure – 4500 psig (315 bar) |
| Head/Connect Orientation | 1 | Standard High Side Left, Low Side Right(2) / Std Head Orientation |
| Approvals | A | FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof |
| Electronic Housing Material & Connection Type | C | Material: Polyster Powder Coated Aluminum Connection: 1/2 NPT Lighting Protection: Yes |
| Output/Protocol | F | Analog Output: none Digital Protocol: Foundation Fieldbus |
| Customer Interface Selections | B | Indicator: Basic Ext Zero, Span & Config Buttons: None Languages: English |
| Application Software | 1 | Diagnostics: Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 5 | Write Protect: Enabled Fail Mode: N/A High & Low Output Limits(3): N/A Fieldbus or Profibus |
| General Configuration | S | Factory Standard |
| Accuracy and Calibration | A | Accuracy: Standard Calibrated Range: Factory Std Calibration Qty: Single Calibration |
| Mounting Bracket | 0 | Bracket Type: None Material: None |
| Customer Tag | 1 | One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) |
| Unassembled Conduit Plugs & Adapters | A6 | 1/2 NPT 316 SS Certified Conduit Plug |
| Certifications & Warranty | F1 | Calibration Test Report & Certificate of Conformance |
| Factory | 0000 | Factory Identification |
- Except Carbon Steel Heads shall use 316SS Vent/Drain, Plugs & Adapters w hen required
- Left side/Right side as view ed from the customer connection perspective
- NAMUR Output Limits 3.8 – 20.5mAdc can be configured by the customer or select custom configuration Table Vc
- Estimated Lead Time: 4 – 6 Weeks
- Shipping Weight: 10 Kg
