Part Number: STF724-B1HS1A-H1F-0-EH0-13S-A-00A0-00-0000

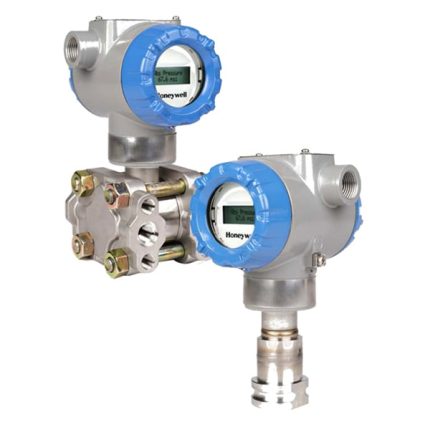

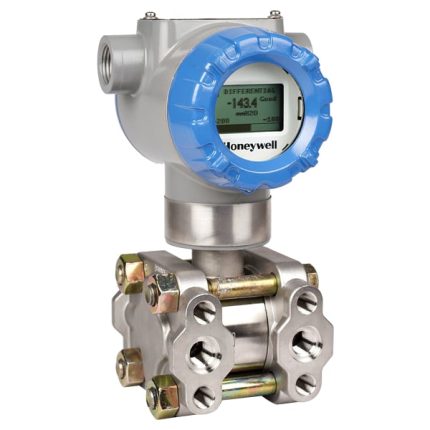

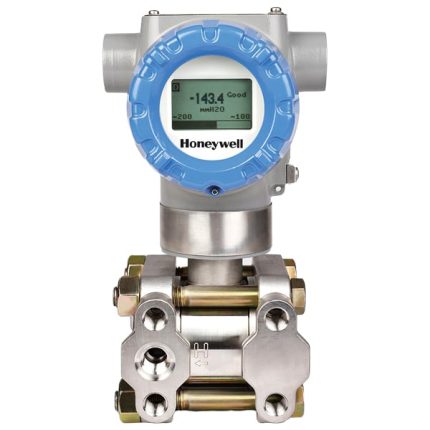

Model: STF72F SmartLine Flange-Mounted Level Transmitter
Manufacturer: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STF724 | Model STF700 Flange Mounted Liquid Level Transmitter |
| Process Wetted Heads & Diaphragm Materials | B | Design: Flush Ref. Head: Carbon steel(1) Vent DrainValve on Ref. Head(2): 316 SS Barrier Diaphrm. (wetted): Hast C(3) Diaphrm. Plate (wetted): Hast C(3) Extension (wetted): N/A |
| Fill Fluid (Meter Body & Flange) | 1 | Silicone Oil 200 |
| Process Connection | H | Reference Head: 1/2 NPT Adapter – material matches head material and head bolt material(4) Flange: High Pressure Side |
| Bolts for Process Heads | S | 316 SS Bolts |
| Vent/Drain Type/Location | 1 | Ref. Head Type: Single Ended Vent Type: None Location: None Vent Material: None |
| Gasket Material | A | Teflon® or PTFE (Glass Filled) |
| Flange(ANSI Flanges have125-500 AARH Surface Finish) | H | 3\’ ANSI Class 150 Flange Material: 316 SS (non-wetted) Threaded Nut Ring Material: 304 SS (non-wetted) |
| Gasket Ring (wetted) | 1 | Flush Design 316L SS |
| Extension (wetted) | F | Flush |
| Approvals | 0 | No Approvals Required |
| Electronic Housing Material & Connection Type | E | Material: 316 Stainless Steel (Grade CF8M) Connection: 1/2 NPT Lighting Protection: None |
| Output/Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | 0 | Indicator: None Ext Zero, Span & Config Buttons: None Languages: None |
| Application Software | 1 | Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 3 | Write Protect: Enabled Fail Mode: High> 21.0mAdc High & Low Output Limits(5): Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | S | Factory Standard |
| Accuracy and Calibration | A | Accuracy: Standard Calibrated Range: Standard Calibration Qty: Single Calibration |
| Mounting Bracket | 0 | None (not required with flange mount unit) |
| Customer Tag | 0 | No customer tag |
| Unassembled Conduit Plugs & Adapters | A0 | No Conduit Plugs or Adapters Required |
| Certifications & Warranty | 00 | None – No additional options |
| Factory | 0000 | Factory Identification |
- Carbon Steel heads are zinc-plated and not recommended for w ater service due to hydrogen migration. For that service, use
the 316 stainless steel Wetted Reference Head. - Vent/Drains are Teflon or PTFE coated for lubricity.
- Hastelloy® C-276 or UNS N10276
- Except Carbon Steel Heads shall use 316SS Vent/Drain, Plugs & Adapters when required
- NAMUR Output Limits 3.8 – 20.5mAdc can be configured by the customer or select custom configuration Table Vc
- Estimated Lead Time: 12 – 18 Weeks
- Shipping Weight: 8 Kg
