Part Number: STG74L-E1G000-1-C-BHS-11S-A-31A7-00-0000

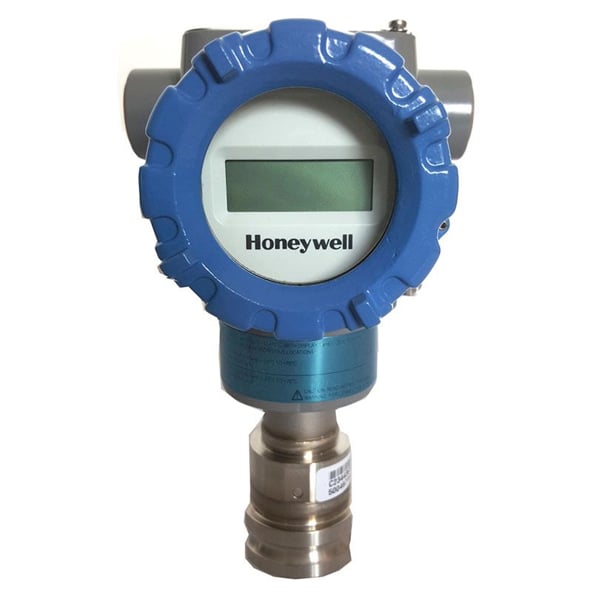

Model: STG74L SmartLine Gauge Pressure Transmitter
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STG74L | Gauge In-Line Pressure Transmitter |
| Process Wetted Heads & Diaphragm Materials | E | Process Head Material: 316 Stainless Steel Diaphragm Material: 316L SS |
| Fill Fluid | 1 | Silicone Oil 200 |
| Process Connection | G | Size/Type: 1/2\’ NPT (female) Material: Same as Process Head |
| Bolt/Nuts Materials | 0 | None |
| Vent/Drain Type/Location | 0 | Head Type: None Vent Type: None Location: None Vent Material: None |
| Gasket Materials | 0 | None |
| Head/Connect Orientation | 1 | Standard High Side Left, Low Side Right(1) / Std Head Orientation |
| Approvals | C | ATEX Explosion proof, Intrinsically Safe & Non-incendive |
| Electronic Housing Material & Connection Type | B | Material: Polyster Powder Coated Aluminum Connection: M20 Lighting Protection: None |
| Output/ Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | S | Indicator: Standard (w/internal Zero, Span & Conf Buttons) Ext Zero, Span & Config Buttons: None Languages: EN, RU |
| Application Software | 1 | Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High> 21.0mAdc High & Low Output Limits(2): Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | S | Factory Standard |
| Accuracy and Calibration | A | Accuracy: Standard Calibrated Range: Factory Standard Calibration Qty: Single Calibration |
| Mounting Bracket | 3 | Bracket Type: Angle Bracket Material: 316 SS |
| Customer Tag | 1 | One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) |
| Unassembled Conduit Plugs & Adapters | A7 | M20 316 SS Certified Conduit Plug |
| Certifications & Warranty | 00 |
No additional options |
| Factory | 0000 | Factory Identification |
- Left side/Right side as viewed from the customer connection perspective
- NAMUR Output Limits are configurable by customer
- Estimated Lead Time: 12 – 18 Weeks
- Shipping Weight: 8 Kg
