Part Number: STG74S-E1G000-1-A-AHS-11S-A-00A0-00-0000

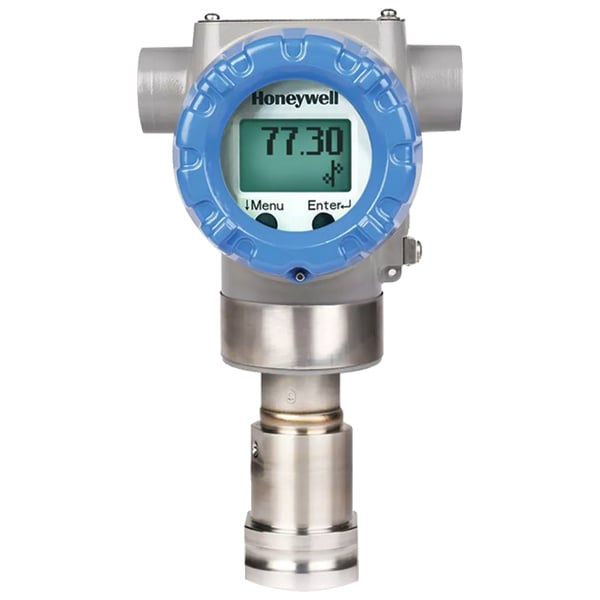

Model: STG74S SmartLine Gauge Pressure Transmitter
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STG74S | Gauge In-Line Pressure Transmitter |
| Process Head & Diaphragm Materials | E | Process Head/Reference Head Material:(1) 316 Stainless Steel Barrier Diaphragm Material: 316L SS, Hastelloy C – 276 |
| Fill Fluid | 1 | Silicone Oil 200 |
| Process | G | Size/Type: 1/2\’ NPT (female) Material: Same as Process Head(2) |
| Bolt/Nuts Materials | 0 | None |
| Vent/Drain Type/Location | 0 | Head Type: None Vent Type: None Location: None Vent Material: None |
| Gasket Materials | 0 | None |
| Head/Connect Orientation | 1 | Meter Body: Standard High Side Left, Ref Side Right(3) / Std Head Orientation |
| Approvals | A | Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof |
| Electronic Housing Material & Connection Type | A | Material: Polyster Poweder Coated Aluminum Connection: 1/2 NPT Lighting Protection: None |
| Output/Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | S | Indicator: Standard(w/Internal Zero,Span&Config buttons) Ext Zero, Span & Config Buttons: None Languages: EN |
| Application Software | 1 | Diagnostics: Standard Diagnostics |
| Output Limit, Failsafe % Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High> 21.0mAdc High & Low Output Limits:(4) Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | S | Factory Standard |
| Accuracy & Calibration | A | Accuracy: Standard Calibrated Range: Factory Standard Calibration Qty: Single Calibration |
| Mounting Bracket | 0 | Bracket Type: None Material: None |
| Customer Tag | 0 | No customer tag |
| Unassembled Conduit Plugs & Adapters | A0 | No Conduit Plugs or Adapters Required |
| Certifications & Warranty | 00 | No additional options |
| Factory | 0000 | Factory Identification |
- Reference head available with Dual Head Gage models only. In-Line Gage models are supplied with Process Head only.
- STG735,745,775 supplied via 1/2\’ flange adapter same material as process head except carbon steel shall use 316 SS
- Left side/Right side as viewed f rom the customer connection perspective
- NAMUR Output Limits are configurable by customer
- Estimated Lead Time: 12 – 18 Weeks
- Shipping Weight: 8 Kg
