Part Number: STG77L-E2G000-1-C-DHS-11S-B-31A0-TP,OX,FX,FG,F1-0000

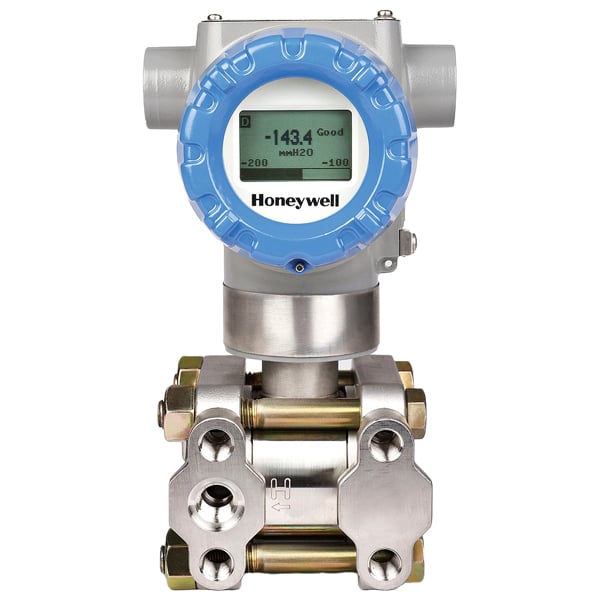

Model: STG700 Gauge Pressure Transmitter
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STG77L | Gauge In-Line Pressure Transmitter |
| Process Wetted Heads & Diaphragm Materials | E | Process Head Material: 316 Stainless Steel Diaphragm Material: 316L SS |
| Fill Fluid | 2 | Fluorinated Oil CTFE |
| Process Connection | G | Size/Type: 1/2\’ NPT (female)
Material: Same as Process Head(1) |
| Bolt/Nuts Materials | 0 | None |
| Vent/Drain Type/Location | 0 | Head Type: None Vent Type: None Location: None Vent Material: None |
| Gasket Materials | 0 | None |
| Head/Connect Orientation | 1 | Standard High Side Left, Low Side Right(2) / Std Head Orientation |
| Approvals | C | ATEX Explosion proof, Intrinsically Safe & Non-incendive |
| Electronic Housing Material & Connection Type | D | Material: Polyester Powder Coated Aluminum
Connection: M20 |
| Output/ Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | S | Indicator: Standard (w/internal Zero, Span & Conf Buttons) Ext Zero, Span & Config Buttons: None |
| Application Software | 1 | Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High> 21.0mAdc High & Low Output Limits(3): Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | S | Factory Standard |
| Accuracy and Calibration | B | Accuracy: Standard Calibrated Range: Custom (Unit Data Required) Calibration Qty: Single Calibration |
| Mounting Bracket | 3 | Bracket Type: Angle Bracket Material: 316 SS |
| Customer Tag | 1 | One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) |
| Unassembled Conduit Plugs & Adapters | A0 | No Conduit Plugs or Adapters Required |
| Certifications & Warranty | TP OX FX FG F1 |
Over-Pressure Leak Test Certificate (1.5X MAWP) (F3392) Cert Clean for O2 or CL2 service per ASTM G93 EN10204 Type 3.1 Material Traceability (FC33341) NACE MR0175; MR0103; ISO15156 (FC33338) Process wetted parts only Calibration Test Report & Certificate of Conformance (F3399) |
| Factory | 0000 | Factory Identification |
- STG730,740,770 supplied via 1/2\’ flange adapter same material as process head except carbon steel shall use 316 SS
- Left side/Right side as viewed from the customer connection perspective
- NAMUR Output Limits are configurable by customer
NOTE: This item is a replacement of STG77L-E2G000-1-C-DHC-11S-B-31A0-TP,OX,FX,FG,F1-0000
- Estimated Lead Time: 12 – 18 Weeks
- Shipping Weight: 8 Kg
