Part Number: STG77L-E2H000-1-0-BH0-11S-A-20A0-OX-0000

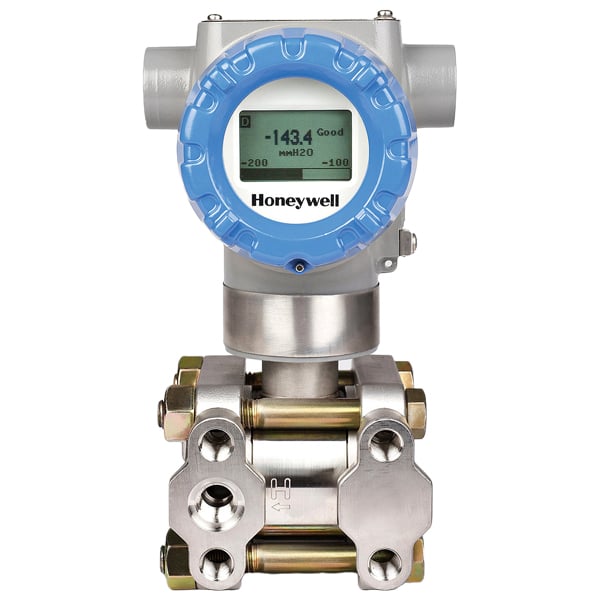

Model: STG700 Gauge Pressure Transmitter
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STG77L | Gauge In-Line Pressure Transmitter |
| Process Wetted Heads & Diaphragm Materials | E | Process Head Material: 316 Stainless Steel Diaphragm Material: 316L SS |
| Fill Fluid | 2 | Fluorinated Oil CTFE |
| Process Connection | H | Size/Type: 1/2\’ NPT (male)
Material: Same as Process Head |
| Bolt/Nuts Materials | 0 | None |
| Vent/Drain Type/Location | 0 | Head Type: None Vent Type: None Location: None Vent Material: None |
| Gasket Materials | 0 | None |
| Head/Connect Orientation | 1 | Standard High Side Left, Low Side Right(1) / Std Head Orientation |
| Approvals | 0 | No Approvals Required |
| Electronic Housing Material & Connection Type | B | Material: Polyester Powder Coated Aluminum
Connection: M20 |
| Output/ Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | 0 | Indicator: None Ext Zero, Span & Config Buttons: None Languages: None |
| Application Software | 1 | Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High> 21.0mAdc High & Low Output Limits(2): Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | S | Factory Standard |
| Accuracy and Calibration | A | Accuracy: Standard Calibrated Range: Factory Standard Calibration Qty: Single Calibration |
| Mounting Bracket | 2 | Bracket Type: Angle Bracket Material: Angle Bracket |
| Customer Tag | 0 | No customer tag |
| Unassembled Conduit Plugs & Adapters | A0 | No Conduit Plugs or Adapters Required |
| Certifications & Warranty | OX | Cert Clean for O2 or CL2 service per ASTM G93 |
| Factory | 0000 | Factory Identification |
- Left side/Right side as viewed from the customer connection perspective
- NAMUR Output Limits are configurable by customer
- Estimated Lead Time: 12 – 18 Weeks
- Shipping Weight: 6 Kg
