Part Number: STR735D-21CC1CC0-DDABA400K-A-AHS-11C-A-11A0-F1

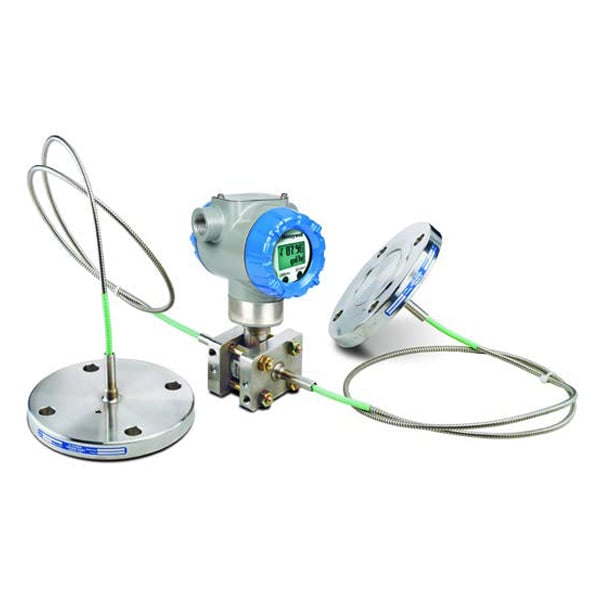

Model: STR735D SmartLine Pressure Transmitter with Remote Diaphragm Seals
Manufacturer: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STR735D | SmartLine Pressure Transmitter with Remote Diaphragm Seals |
| Number of Seals | 2 | 2 Remote Seals |
| Primary Fill Fluid (Meter body) | 1 | Silicone Oil 200 |
| Dual Head DP | C | 316 SS (bolt-on heads) |
| Bolts and Nuts for Transmitter Heads | C | Carbon Steel Bolts and Nuts |
| Secondary Fill Fluid (capillary & seal)** | 1 | Silicone Oil 200 |
| Connection of Remote Seal to Meter Body** | C | Capillary Length: 15 feet (4.5m), SS Armor |
| Seal Option** | 0 | None |
| Flush Flanged Seal with Lower** | DDA | Diaphragm Diameter: 4.1\’ Flange Size:2\’ Flange Pressure Rating(1): ANSI 150 Const.: 23 |
| Wetted Material | BA | Diaphragm: 316L SS Lower: 316L SS |
| Non-Wetted Material (upper, upper insert) | 4 | Upper: 316L SS Upper Insert: 316L SS |
| Bolts(2) | 0 | No Selection |
| Flushing Connection and Plugs(3) | 0 | None |
| Gasket | K | Klinger® C-4401 (non-asbestos) |
| Approvals | A | FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof |
| Electronic Housing Material & Connection Type | A | Material: Polyester Powder Coated Aluminum Connection: 1/2 NPT Lightning Protection: None |
| Output/ Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | S | Indicator: Standard (w/internal Zero, Span & Conf Buttons) Ext Zero, Span & Config Buttons: None Languages: EN, RU |
| Application Software | 1 | Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High> 21.0mAdc High & Low Output Limits(4): Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | C | Custom Configuration (Unit Data Required from customer) |
| Accuracy and Calibration | A | Accuracy: Standard Calibrated Range: Factory Std Calibration Qty: Single Calibration |
| Mounting Bracket | 1 | Bracket Type: Angle Bracket Material: Carbon Steel |
| Customer Tag | 1 | One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) |
| Unassembled Conduit Plugs & Adapters | A0 | No Conduit Plugs or Adapters Required |
| Certifications & Warranty | F1 | Calibration Test Report & Certificate of Conformance |
** Refer to 34-ST-00-128 for additional options, consult factory
- Standard facing 125-250 AARH RF (raised face) serrated surface finish.
- Bolt material w ill be same as Upper Material. How ever, if Table I bolts/nuts material is NACE , seal bolt material w ill be 304 SS NACE.
- Plastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installation
- NAMUR Output Limits 3.8 – 20.5mAdc can be configured by the customer or select custom configuration Table Vc
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 15 Kg
