Part Number: STR73D-21CS1D0-LJGJBCDSK-A-CFB-16S-A-31A6-TP,F1-0000

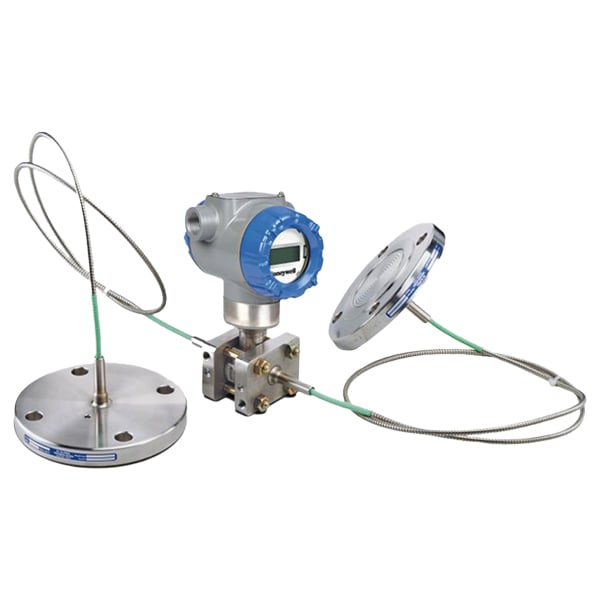

Model: STR700 SmartLine Pressure Transmitter with Remote Diaphragm Seals
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STR73D | STR700 SmartLine Remote Diaphragm Seals |
| Number of Seals | 2 | 2 Remote Seals |
| Primary Fill Fluid (Meter body) | 1 | Silicone Oil 200 |
| Construction: Dual Head DP | C | Non-Wetted Adapter Head Materials: 316 SS (bolt-on heads) |
| Bolts and Nuts for Transmitter Heads | S | 316 SS Bolts and Nuts |
| Secondary Fill Fluid (capillary & seal)** | 1 | Silicone Oil 200 |
| Connection of Remote Seal to Meter Body** | D | Capillary Length: 20 feet (6.1 m), SS Armor |
| Seal Option** | 0 | None |
| Seal with Threaded Process Connection | LJG | Diaphragm Diameter: 4.1\’ Threaded Process Connection Size (NPT Female): 1/2 NPT Pressure Rating |
| Wetted Material | JB | Diaphragm: 316L SS Lower: 316L SS |
| Non-Wetted Material (upper) | C | CS (Nickel Plated) |
| Bolts(1) | D | 304 SS |
| Flushing Connections and Plugs(2) | S | Two 1/2\’ with metal plugs |
| Gasket | K | Klinger® C-4401 (non-asbestos) |
| Approvals | A | FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof |
| Electronic Housing Material & Connection Type | C | Material: Polyester Powder Coated Aluminum Connection: 1/2 NPT Lightning Protection: Yes |
| Output/ Protocol | F | Analog Output: None Digital Protocol: Foundation Fieldbus |
| Customer Interface Selections | B | Indicator: Basic Ext Zero, Span & Config Buttons: None Languages: English |
| Application Software | 1 | Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 6 | Write Protect: Fail Mode: High & Low Output Limits(3): N/A Fieldbus |
| General Configuration | S | Factory Standard |
| Accuracy and Calibration | A | Accuracy: Standard Calibrated Range: Factory Std Calibration Qty: Single Calibration |
| Mounting Bracket | 3 | Bracket Type: Angle Bracket Material: 316 SS |
| Customer Tag | 1 | One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) |
| Unassembled Conduit Plugs & Adapters | A6 | 1/2 NPT 316 SS Certified Conduit Plug |
| Certifications & Warranty | TP F1 |
Over-Pressure Leak Test Certificate (1.5X MAWP) (F3392) Calibration Test Report & Certificate of Conformance (F3399) |
| Factory | 0000 | Factory Identification |
** Refer to 34-ST-00-128 for additional options, consult factory
- If Table I Bolts and Nuts material option is NACE, Bolts and Nuts w ill ship with Alloy Steel NACE and MAWP may change.
- Plastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installation
- NAMUR Output Limits 3.8 – 20.5mAdc can be configured by the customer or select custom configuration Table Vc
- Estimated Lead Time: 4 – 6 Weeks
- Shipping Weight: 10 Kg
