Part Number: STR73D-22E02K0-GFAGE00A0-A-CDE-11S-A-11A0-OX-0000

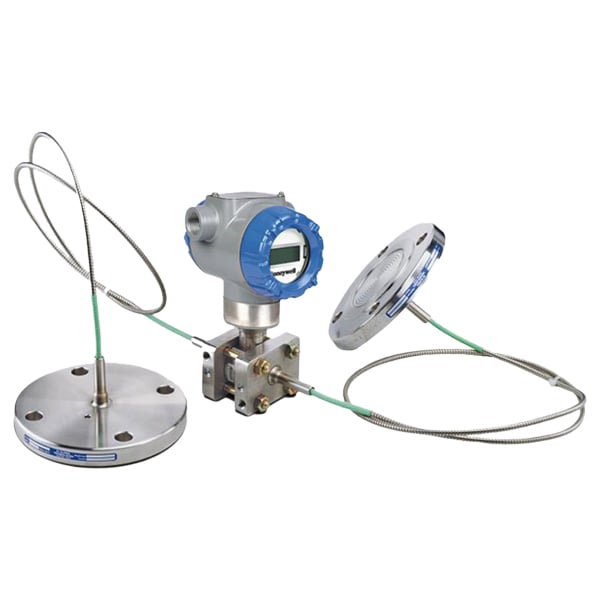

Model: STR700 SmartLine Pressure Transmitter with Remote Diaphragm Seals
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STR73D | STR700 SmartLine Remote Diaphragm Seals |
| Number of Seals | 2 | 2 Remote Seals |
| Primary Fill Fluid (Meter body) | 2 | Fluorinated Oil CTFE |
| Construction: Dual Head DP | E | 316 SS with all-welded meter body |
| Bolts and Nuts for Transmitter Heads | 0 | None |
| Secondary Fill Fluid (capillary & seal)** | 2 | Fluorinated Oil CTFE |
| Connection of Remote Seal to Meter Body** | K | Capillary Length: 20 feet (6.1 m), PVC Coated SS Armor |
| Seal Option** | 0 | None |
| Seal** | GFA | Diaphragm Diameter: 3.5\’ Flange Size: 3\’ Flange Pressure Rating(1): ANSI Class 150/300/600 |
| Wetted Material | GE | Diaphragm: Monel 400® Upper Insert: Monel 400® |
| Non-Wetted Material (upper) | 0 | No Selection |
| Seal-Capillary Connection | 0 | No Selection |
| Calibration Rings | A | None |
| Flushing Connections and Plugs(2) | 0 | None |
| Approvals | A | FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof |
| Electronic Housing Material & Connection Type | C | Material: Polyester Powder Coated Aluminum Connection: 1/2 NPT Lightning Protection: Yes |
| Output/ Protocol | D | Analog Output: 4-20mA dc Digital Protocol: DE Protocol |
| Customer Interface Selections | E | Indicator: Advanced Ext Zero, Span & Config Buttons: Yes Languages: GE, FR, IT, SP, RU, |
| Application Software | 1 | Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High> 21.0mAdc High & Low Output Limits(3): Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | S | Factory Standard |
| Accuracy and Calibration | A | Accuracy: Standard Calibrated Range: Factory Std Calibration Qty: Single Calibration |
| Mounting Bracket | 1 | Bracket Type: Angle Bracket Material: Carbon Steel |
| Customer Tag | 1 | One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) |
| Unassembled Conduit Plugs & Adapters | A0 | No Conduit Plugs or Adapters Required |
| Certifications & Warranty |
OX | Cert Clean for O2 or CL2 service per ASTM G93 |
| Factory | 0000 | Factory Identification |
** Refer to 34-ST-00-128 for additional options, consult factory
- Standard facing 125-250 AARH RF (raised face) serrated surface finish.
- Plastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installation.
- NAMUR Output Limits 3.8 – 20.5mAdc can be configured by the customer or select custom configuration Table Vc.
- Estimated Lead Time: 12 – 16 Weeks
- Shipping Weight: 15 Kg
