Part Number: STR745G-11A03B0-AFCAE21BS-A-EHS-11S-A-11A0

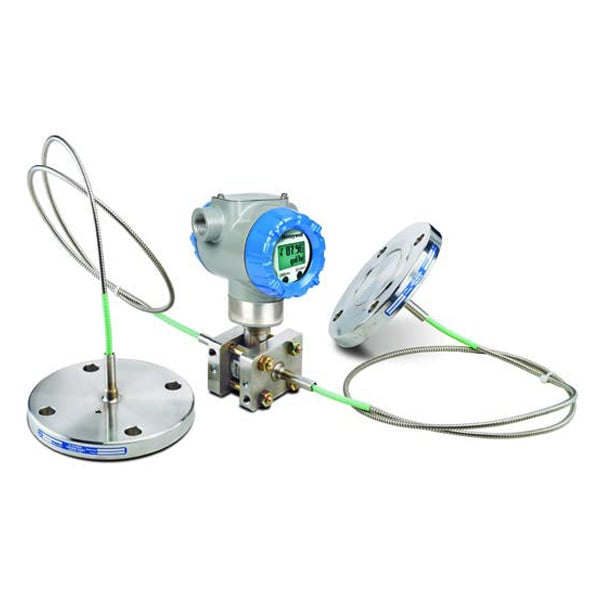

Model: STR745G SmartLine Pressure Transmitter with Remote Diaphragm Seals
Manufacturer: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STR745G | SmartLine Pressure Transmitter with Remote Diaphragm Seals |
| Number of Seals | 1 | 1 Remote Seal (High Side) |
| Primary Fill Fluid (Meter body) | 1 | Silicone Oil 200 |
| In-Line Gauge | A | 316 SS Bonnet |
| Bolts and Nuts for Transmitter Heads | 0 | None |
| Secondary Fill Fluid (capillary & seal)** | 3 | Silicone Oil 704 |
| Connection of Remote Seal to Meter Body** | B | Capillary Length: 10 feet (3.0m), SS Armor |
| Seal Option** | 0 | None |
| Flush Flanged Seal with Lower** | AFC | Diaphragm Diameter: 3.5\’ Flange Size: 3\’ Flange Pressure Rating(1): ANSI 300 |
| Wetted Material | AE | Diaphragm: Monel 400® Upper Insert: Monel 400® |
| Non-Wetted Material (upper, upper insert) | 2 | 316L SS |
| Seal-Capillary Connection | 1 | Center Seal |
| Calibration Rings | B | 316L SS |
| Flushing Connection and Plugs(2) | S | Two 1/2\’ with metal plugs |
| Approvals | A | FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof |
| Electronic Housing Material & Connection Type | E | Material: 316 Stainless Steel (Grade CF8M) Connection: 1/2 NPT Lightning Protection: None |
| Output/ Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | S | Indicator: Standard (w/internal Zero, Span & Conf Buttons) Ext Zero, Span & Config Buttons: None Languages: EN, RU |
| Application Software | 1 | Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High> 21.0mAdc High & Low Output Limits(3): Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | S | Factory Standard |
| Accuracy and Calibration | A | Accuracy: Standard Calibrated Range: Factory Std Calibration Qty: Single Calibration |
| Mounting Bracket | 1 | Bracket Type: Angle Bracket Material: Carbon Steel |
| Customer Tag | 1 | One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) |
| Unassembled Conduit Plugs & Adapters | A0 | No Conduit Plugs or Adapters Required |
** Refer to 34-ST-00-128 for additional options, consult factory
- Standard facing 125-250 AARH RF (raised face) serrated surface finish.
- Plastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installation.
- NAMUR Output Limits 3.8 – 20.5mAdc can be configured by the customer or select custom configuration Table Vc.
- Estimated Lead Time: 6 – 8 Weeks
- Shipping Weight: 13 Kg
