Part Number: STR74G-11A01D0-DDCBA400G-C-BHC-13C-B-71A7-TP,F1,FX,F5,FG-0000

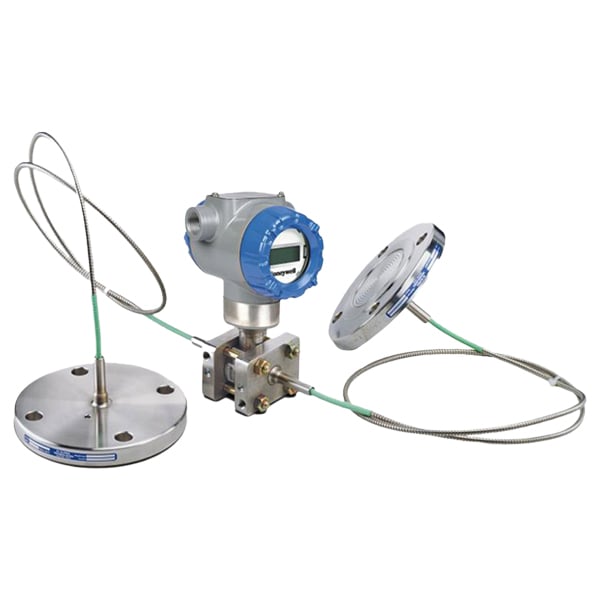

Model: STR700 SmartLine Pressure Transmitter with Remote Diaphragm Seals
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STR74G | STR700 SmartLine Remote Diaphragm Seals |
| Number of Seals | 1 | 1 Remote Seal (High Side) |
| Primary Fill Fluid (Meter body) | 1 | Silicone Oil 200 |
| Construction: In-Line Gauge | A | Non-Wetted Adapter Head Materials: 316 SS Bonnet |
| Bolts and Nuts for Transmitter Heads | 0 | None |
| Secondary Fill Fluid (capillary & seal)** | 1 | Silicone Oil 200 |
| Connection of Remote Seal to Meter Body** | D | Capillary Length: 20 feet (6.1 m), SS Armor |
| Seal Option** | 0 | None |
| Flush Flanged Seal** | DDC | |
| Wetted Material | BA | Diaphragm: 316L SS Upper Insert: 316L SS |
| Non-Wetted Material (upper, upper insert) | 4 | Upper: 316L SS Upper Insert: 316L SS |
| Bolts(1) | 0 | No Selection |
| Flushing Connection and Plugs(2) | 0 | 316L SS |
| Gasket | G | Grafoil® |
| Approvals | C | ATEX Explosion proof, Intrinsically Safe & Non-incendive |
| Electronic Housing Material & Connection Type | B | Material: Polyester Powder Coated Aluminum Connection: M20 Lightning Protection: None |
| Output/ Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | C | Indicator: Basic Ext Zero, Span & Config Buttons: Yes Languages: English |
| Application Software | 1 | Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 3 | Write Protect: Enabled Fail Mode: High> 21.0mAdc High & Low Output Limits(3): Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | C | Custom Configuration (Unit Data Required from customer) |
| Accuracy and Calibration | B | Accuracy: Standard Calibrated Range: Custom (Unit Data Required) Calibration Qty: Single Calibration |
| Mounting Bracket | 7 | Bracket Type: Flat Bracket Material: 316 SS |
| Customer Tag | 1 | One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) |
| Unassembled Conduit Plugs & Adapters | A7 | M20 316 SS Certified Conduit Plug |
| Certifications & Warranty | TP F1 FX F5 FG |
Over-Pressure Leak Test Certificate (1.5X MAWP) (F3392) Calibration Test Report & Certificate of Conformance (F3399) EN10204 Type 3.1 Material Traceability (FC33341) Certificate of Origin (F0195) NACE MR0175; MR0103; ISO15156 (FC33338) Process wetted parts only |
| Factory | 0 0 0 0 | Factory Identification |
** Refer to 34-ST-00-128 for additional options, consult factory
- Bolt material w ill be same as Upper Material. How ever, if Table I bolts/nuts material is NACE or B7M, seal bolt material w ill be 304 SS NACE.
- Plastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installation
- NAMUR Output Limits 3.8 – 20.5mAdc can be configured by the customer or select custom configuration Table Vc
- Estimated Lead Time: 12 – 16 Weeks
- Shipping Weight: 10 Kg
