Part Number: STR74G-11B0120-BDABA40HK-A-AHS-11S-A-00A0-00-0000

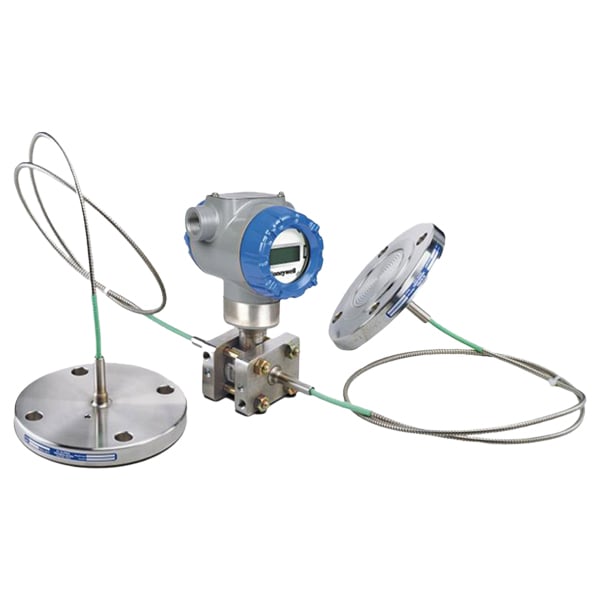

Model: STR700 SmartLine Pressure Transmitter with Remote Diaphragm Seals
Brand: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STR74G | STR700 SmartLine Remote Diaphragm Seals |
| Number of Seals | 1 | 1 Remote Seal (High Side) |
| Primary Fill Fluid (Meter body) | 1 | Silicone Oil 200 |
| Construction: In-Line Gauge | B | 316 SS Bonnet for Close-Couple |
| Bolts and Nuts for Transmitter Heads | 0 | None |
| Secondary Fill Fluid (capillary & seal)** | 1 | Silicone Oil 200 |
| Connection of Remote Seal to Meter Body** | 2 | 2 inch long SS nipple close-coupled |
| Seal Option** | 0 | None |
| Flush Flanged Seal with Lower** |
BDA | Diaphragm Diameter: 2.4\’ Flange Size: 2\’ Flange Pressure Rating(1): ANSI 150 Const. – See Spec. Figure 34-ST-03-104: 22 |
| Wetted Material | BA | Diaphragm: 316L SS Upper Insert: 316L SS |
| Non-Wetted Material (upper, upper insert) | 4 | Upper: 316L SS Upper Insert: 316L SS |
| Bolts(2) | 0 | No Selection |
| Flushing Connection and Plugs(3) | H | One 1/4\’ with plastic plug |
| Gasket | K | Klinger® C-4401 (non-asbestos) |
| Approvals | A | FM Explosion proof, Intrinsically Safe, Non-incendive, & Dustproof |
| Electronic Housing Material & Connection Type | A | Material: Polyester Powder Coated Aluminum Connection: 1/2 NPT Lightning Protection: None |
| Output/ Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | K | |
| Application Software | 1 | Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High> 21.0mAdc High & Low Output Limits(4): Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | S | Factory Standard |
| Accuracy and Calibration | A | Accuracy: Standard Calibrated Range: Factory Std Calibration Qty: Single Calibration |
| Mounting Bracket | 0 | Bracket Type: None Material: None |
| Customer Tag | 0 | No customer tag |
| Unassembled Conduit Plugs & Adapters | A0 | No Conduit Plugs or Adapters Required |
| Certifications & Warranty | 00 | None – No other options |
| Factory | 0 0 0 0 | Factory Identification |
** Refer to 34-ST-00-128 for additional options, consult factory
- Standard facing 125-250 AARH RF (raised face) serrated surface finish.
- Bolt material w ill be same as Upper Material. How ever, if Table I bolts/nuts material is NACE or B7M, seal bolt material w ill be 304 SS NACE.
- Plastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installation
- NAMUR Output Limits 3.8 – 20.5mAdc can be configured by the customer or select custom configuration Table Vc
- Estimated Lead Time: 12 – 16 Weeks
- Shipping Weight: 8 Kg
