Part Number: STR82D-11DS120-AFCAA21BS-C-CHE-11C-B-31A0-F1,TP,FX-0000

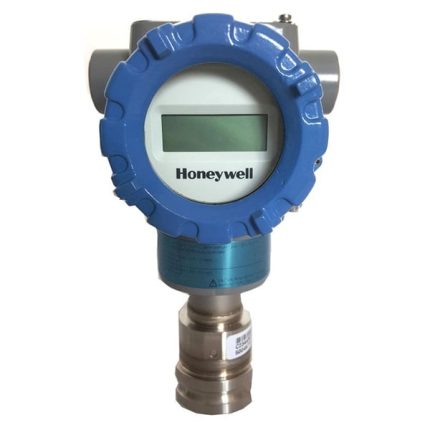

Model: STR82D SmartLine Pressure Transmitter with Remote Diaphragm Seals
Manufacturer: Honeywell
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Ordering Information
| Model | STR82D | SmartLine Pressure Transmitter with Remote Diaphragm Seals |
| Number of Seals | 1 | 1 Remote Seal (High Side) |
| Primary Fill Fluid (Meter body) | 1 | Silicone Oil 200 |
| Dual Head DP | D | 316 SS for Close-Couple |
| Bolts and Nuts for Transmitter Heads | S | 316 SS Bolts and Nuts |
| Secondary Fill Fluid (capillary & seal)** | 1 | Silicone Oil 200 |
| Connection of Remote Seal to Meter Body** | 2 | 2 inch long SS nipple close-coupled |
| Seal Option** | 0 | None |
| Flush Flanged Seal with Lower** | AFC | Diaphragm Diameter: 3.5\’ Flange Size: 3\’ Flange Pressure Rating(1): ANSI 300 |
| Wetted Material | AA | Diaphragm: 316L SS Upper Insert: 316L SS |
| Non-Wetted Material (upper, upper insert) | 2 | 316L SS |
| Seal-Capillary Connection | 1 | Center Seal |
| Calibration Rings | B | 316L SS |
| Flushing Connection and Plugs(2) | S | Two 1/2\’ with metal plugs |
| Approvals | C | ATEX Explosion proof, Intrinsically Safe & Non-incendive |
| Electronic Housing Material & Connection Type | C | Material: Polyester Powder Coated Aluminum Connection: 1/2 NPT Lightning Protection: Yes |
| Output/ Protocol | H | Analog Output: 4-20mA dc Digital Protocol: HART Protocol |
| Customer Interface Selections | E | Indicator: Advanced Buttons: Yes Languages: EN,GR,IT, FR,SP,RU, TU |
| Application Software | 1 | Standard Diagnostics |
| Output Limit, Failsafe & Write Protect Settings | 1 | Write Protect: Disabled Fail Mode: High> 21.0mAdc High & Low Output Limits(3): Honeywell Std (3.8 – 20.8 mAdc) |
| General Configuration | C | Custom Configuration (Unit Data Required from customer) |
| Accuracy and Calibration | B | Accuracy: Standard Calibrated Range: Custom (Unit Data Required) Calibration Qty: Single Calibration |
| Mounting Bracket | 3 | Bracket Type: Angle Bracket Material: Angle Bracket |
| Customer Tag | 1 | One Wired Stainless Steel Tag (Up to 4 lines 26 char/line) |
| Unassembled Conduit Plugs & Adapters | A0 | No Conduit Plugs or Adapters Required |
| Certifications & Warranty | F1 TP FX |
Calibration Test Report & Certificate of Conformance (F3399) Over-Pressure Leak Test Certificate (1.5X MAWP) (F3392) EN10204 Type 3.1 Material Traceability (FC33341) |
| Factory | 0000 | Factory Identification |
** Refer to 34-ST-00-128 for additional options, consult factory
- Standard facing 125-250 AARH RF (raised face) serrated surface finish.
- Plastic Plugs are TEMPORARY ONLY to protect threads and MUST be REMOVED before installation.
- NAMUR Output Limits 3.8 – 20.5mAdc can be configured by the customer or select custom configuration Table Vc.
- Estimated Lead Time: 12 – 18 Weeks
- Shipping Weight: 8 Kg
