Part Number: TTH200E1HBFCSEMGHAD3SFM5

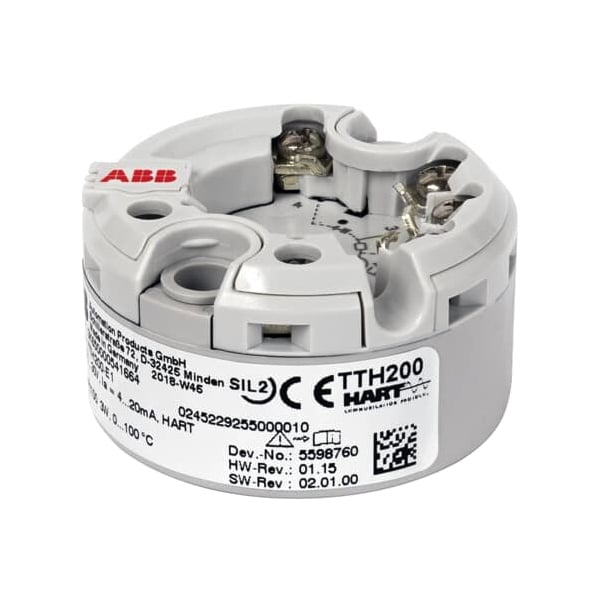

Model: TTH200 Head-Mount Temperature Transmitter
Manufacturer: ABB
Overview
The TTH200 is provided for all HART standard applications in temperature measurement with one sensor. The transmitter supports the same functionality as the TTH300, but without sensor redundancy and sensor drift monitoring. It can be configured with ABB-tools such as DAT200 (Asset Vision Basic) via DTM, Handheld via EDD, FIM (Field Information Manager) or any standard tool using FDI-/FDT-Technology.
Data
- Universal sensor input
– RTD, thermocouple, O, mV - Functional safety SIL 2 / SIL 3 in accordance with IEC 61508
- Output signal
– 4 to 20 mA, HART - Accuracy 0.1 %, long-term stability 0.05 % per year
- Wire break / corrosion monitoring in accordance with NE 89
- Diagnostic information in accordance with NE 107
- Approvals for explosion protection
– ATEX
– FM / CSA
– GOST
Ordering Information
- Base Model: TTH200 – TTH200 Head Mounted Temperature Transmitter, HART, Pt100 (RTD), thermocouples, electrical isolation
- Explosion Protection: E1 –
ATEX Intrinsic Safety type of protection: Zone 0: II 1 G
Ex ia IIC T6, Zone 1 (0): II 2 (1) G Ex [ia] ib IIC T6,
Zone 1 (20): II 2 G (1D) Ex [iaD] ib IIC T6 - Communication Protocol: H – HART
- Configuration: BF – Customer-specific configuration, except user curve*
- Certificates: CS – SIL2 – Declaration of Conformity
- Calibration Certificates: EM – With 5-point factory certificate
- Handling of Certificates: GHA – Send with instrument
- Display Options: D3 – LCD indicator type AS
- Mounting Options: SF – Snap-on fixing set for 35 mm rail acc. EN 60175 (incl. fixing screws)
- Documentation Language: M5 – English
*E.g. set measuring range, TAG no.
- Estimated Lead Time: 4 – 6 Weeks
- Shipping Weight: 8 Kg
