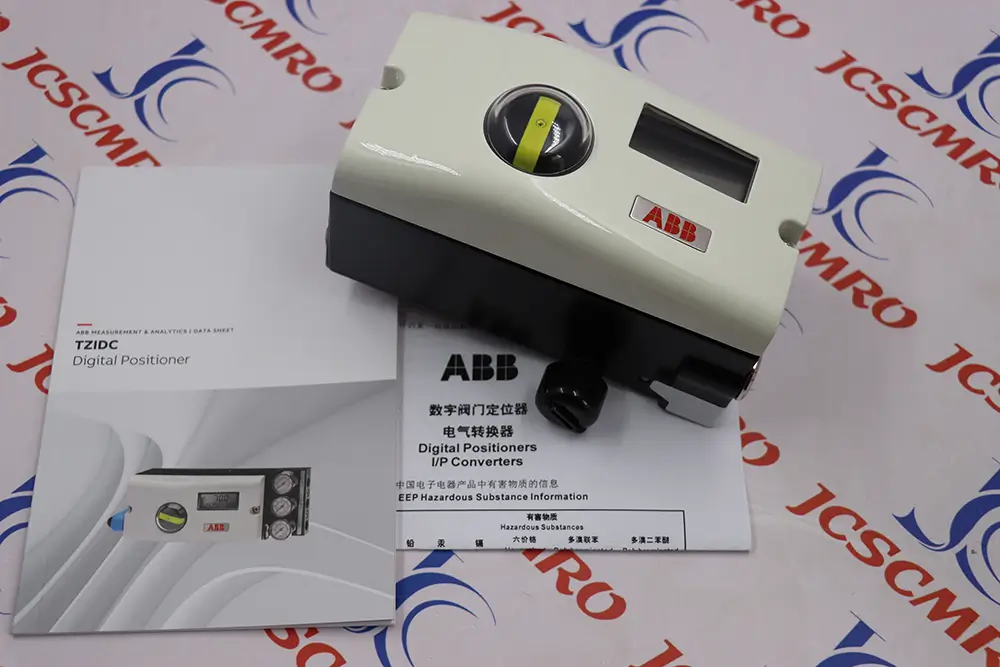

ABB V18345 | TZIDC ELECTRO-PNEUMATIC POSITIONER | 4-20MA INPUT

The ABB V18345(TZIDC) is an electronically configurable positioner with communication capabilities designed for mounting to pneumatic linear or part-turn actuators. It features a small and compact design, a modular construction, and an excellent cost-performance ratio.
Fully automatic determination of the control parameters and adaptation to the final control element yield considerable time savings and an optimal control behavior.

Valve Positioner Features

• 4-20 mA Input, 2 wire
• Connector plug for LCI adapter and FSK module for HART
• Fail save and fail freeze function – selectable safe position of valve
• Output/safe position – single acting, fail safe
• No explosion protection
• Cable Thread M20 x 1.5
• Air pipe: Thread G 1/4
• Approvals ATEX, IECEx, FM, CSA, EAC TR-CU-012
