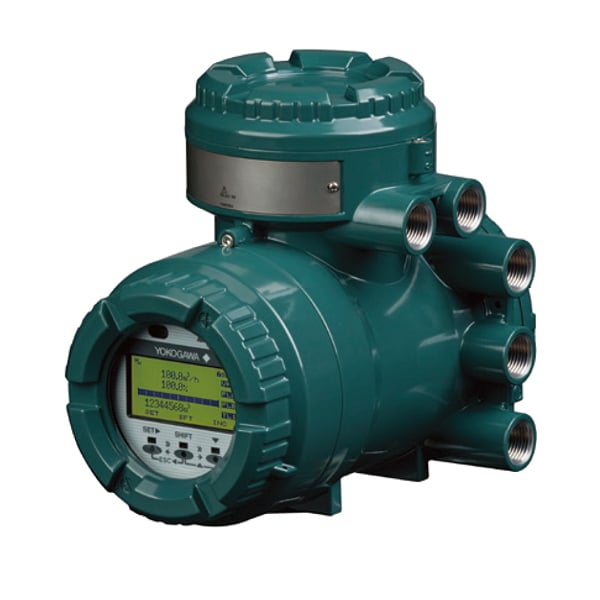

Part Number: YokoGawa AXG010-CANF2BA1-AP114B-1JA12/SCT/L3/M01/CH
Model: AXG Magnetic Flowmeter
Brand: Yokogawa
Condition: New & Original in Factory Packing
Factory Warranty: 12 Months
Model and Suffix Codes
| Model | AXG010 | Magnetic Flowmeter (10 mm/0.4 in) |
| Use | -C | Explosion protection |
| Construction | A | Integral flowmeter |
| Explosion Protection | NF2 | |
| Process connection | BA1 | Stainless Steel Flange (F304): ASME Class 150 Flange |
| Lining | A | PFA Lining |
| Electrode | P | Platinum-Iridium |
| Grounding Device | 1 | None |
| Housing and Coating | 1 | Standard Material with Standard Coating |
| Cable Entry | 4 | ISO M20×1.5 Female |
| Accuracy | B | Standard |
| Power Supply | -1 | 100-240 V AC / 100-120 V DC |
| Communication and I/O | JA | #: A, B, C, D, E, F, G, H, J, K, P, Q, R, S, T HART 7 and I/O (Type A to K, P to T, See separate table) |
| Transmitter Wiring Terminal | 1 | M4 Screw-type |
| Display | 2 | With Display (English, Chinese) |
| Stainless Steel Tag Plate | /SCT | The pendant type tag plate (stainless steel 304) is wired around the flowmeter neck. Select optional code SCT when necessary in addition to that on the nameplate, on which the Tag No. is inscribed. Plate size (Height x Width): Approx. 12.5 mm x 40 mm (4.92 in. x 15.7 in.) |
| Calibration Certificate (Level 3) | /L3 | The Declaration and the Primary Standard List are issued. |
| Material Certificate | /L3 | Material certificate is issued. Target Parts: PFA Lining: Measuring Pipe, Electrodes, Grounding Devices (Grounding Rings Plate Type, Grounding Rings Electrode Type, or Built-in Grounding Electrodes), Flanges (for flange type), Mini-flanges (for wafer type), Adapters for Hygienic Ceramics Tube: Grounding Devices (Grounding Rings Plate Type, or Grounding Rings Electrode Type), Union Joint |
| /CH |
NOTE: This item is a replacement of AXG010-CAKF2BA1-AP114B-1JA12/SCT/L3/M01
- Estimated Lead Time: 8 – 9 Weeks
- Shipping Weight: 10 Kg
