1. General introduction

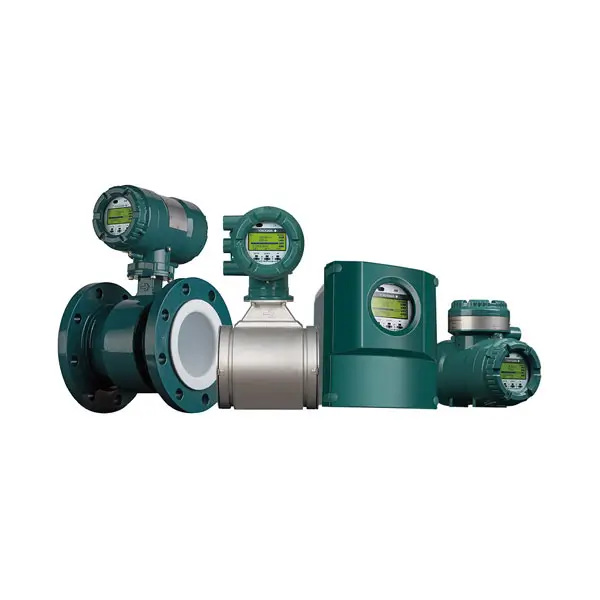

AXW magnetic flow meter is ideal for for general industrial process lines and water supply / sewage applications. With outstanding reliability and ease of operation and maintenance, developed on decades of field-proven experience, the AXW will increase user benefits while reducing total cost of ownership. The sizes are available from 25 to 1800 mm (1 to 72 in.). Besides fluorocarbon PTFE, lining can be selected from various rubber linings. Process connection also supports various specifications such as ASME, EN, AS, and JIS.
Besides, AXW magnetic flow meter come with several outstanding features as: dual frequency excitation method realizes stable measurement; maximum four inputs/outputs of current, pulse, and
status signals can be selected; improved operation and monitoring function, improved Maintainability variable Communication Protocol as Hart 7, Brain and Modbus. It’s available for both integrate and remote type, transmitter AXW4A and AXF11AG are selectable for remote construction type.
2. Main specifications
| Meter size | Accuracy | Measure Range | Lining | Electrode | Process Connection |
| 25 to 1800mm | Standard: ± 0.3% High | 0.1 to 10m/s | PTFE, Polyurethane, Natural Hard Rubber, Natural Soft Rubber | Stainless steel 316L, HASTELLOY C-276 equivalent | Wafer, Flange |
3. Model selection of General-purpose, Submersible, Explosion protection, Wafer, Flange (25 to 400 mm/1 to 16 in.)
| Model | Suffix Codes | Description | |||||||||||||
| AXW025 | Magnetic Flowmeter (25 mm/1 in) | ||||||||||||||
| AXW032 | Magnetic Flowmeter (32 mm/1.25 in) | ||||||||||||||
| AXW040 | Magnetic Flowmeter (40 mm/1.5 in) | ||||||||||||||
| AXW050 | Magnetic Flowmeter (50 mm/2 in) | ||||||||||||||
| AXW065 | Magnetic Flowmeter (65 mm/2.5 in) | ||||||||||||||
| AXW080 | Magnetic Flowmeter (80 mm/3 in) | ||||||||||||||
| AXW100 | Magnetic Flowmeter (100 mm/4 in) | ||||||||||||||
| AXW125 | Magnetic Flowmeter (125 mm/5 in) | ||||||||||||||
| AXW150 | Magnetic Flowmeter (150 mm/6 in) | ||||||||||||||
| AXW200 | Magnetic Flowmeter (200 mm/8 in) | ||||||||||||||
| AXW250 | Magnetic Flowmeter (250 mm/10 in) | ||||||||||||||
| AXW300 | Magnetic Flowmeter (300 mm/12 in) | ||||||||||||||
| AXW350 | Magnetic Flowmeter (350 mm/14 in) | ||||||||||||||
| AXW400 | Magnetic Flowmeter (400 mm/16 in) | ||||||||||||||
| Use | -G | General-purpose | |||||||||||||
| -C | Explosion protection | ||||||||||||||
| -W | Submersible | ||||||||||||||
| Construction | A | Integral Flowmeter | |||||||||||||
| D | Remote Sensor (for AXFA11) | ||||||||||||||
| G | Remote Sensor (for AXW4A) | ||||||||||||||
| Explosion Protection | 000 | Non Explosion Protection Approval | |||||||||||||
| KF2 | ATEX Flameproof | ||||||||||||||
| SF2 | IECEx Flameproof | ||||||||||||||
| Process Connection(Wafer) | AA1 | ASME Class 150 Wafer | |||||||||||||
| AA2 | ASME Class 300 Wafer | ||||||||||||||
| AE1 | EN PN10 Wafer | ||||||||||||||
| AE2 | EN PN16 Wafer | ||||||||||||||
| AE4 | EN PN40 Wafer | ||||||||||||||
| AG1 | JIS F12 Wafer | ||||||||||||||
| AJ1 | JIS 10K Wafer | ||||||||||||||
| AJ2 | JIS 20K Wafer | ||||||||||||||
| Process Connection (Flange F304) | BA1 | ASME Class 150 Flange | |||||||||||||
| BA2 | ASME Class 300 Flange | ||||||||||||||
| BE1 | EN PN10 Flange | ||||||||||||||
| BE2 | EN PN16 Flange | ||||||||||||||
| BE4 | EN PN40 Flange | ||||||||||||||
| BG1 | JIS F12 Flange | ||||||||||||||
| BJ1 | JIS 10K Flange | ||||||||||||||
| BJ2 | JIS 20K Flange | ||||||||||||||
| Process Connection (Flange CS) | CA1 | ASME Class 150 Flange | |||||||||||||
| CA2 | ASME Class 300 Flange | ||||||||||||||
| CE1 | EN PN10 Flange | ||||||||||||||
| CE2 | EN PN16 Flange | ||||||||||||||
| CE4 | EN PN40 Flange | ||||||||||||||
| CG1 | JIS F12 Flange | ||||||||||||||
| CJ1 | JIS 10K Flange | ||||||||||||||
| CJ2 | JIS 20K Flange | ||||||||||||||
| Lining | F | PTFE Lining | |||||||||||||
| U | Polyurethane Rubber Lining | ||||||||||||||
| H | Natural Hard Rubber Lining | ||||||||||||||
| D | Natural Soft Rubber Lining | ||||||||||||||
| Electrode | L | Stainless Steel 316L | |||||||||||||
| H | Nickel Alloy | ||||||||||||||
| Grounding Device | 1 | None | |||||||||||||
| 2 | Grounding Rings | ||||||||||||||
| Housing and Coating | 1 | Standard Material with Standard Coating | |||||||||||||
| 2 | Standard Material with Rugged Coating | ||||||||||||||
| Cable Entry | 0 | JIS G1/2 Female | |||||||||||||
| 2 | ASME 1/2 NPT Female | ||||||||||||||
| 4 | ISO M20×1.5 Female | ||||||||||||||
| Accuracy | B | Standard | |||||||||||||
| Power Supply | -1 | 100-240 V AC / 100-120 V DC | |||||||||||||
| -2 | 24 V AC / DC | ||||||||||||||
| -N | None (Remote Sensor) | ||||||||||||||
| Communication and I/O | D# | #: A, B, C, D, E, F, G, H, J, K, BRAIN and I/O | |||||||||||||
| J# | #: A, B, C, D, E, F, G, H, J, K, HART 7 and I/O | ||||||||||||||
| M# | #: 0, 2, 6, Modbus and I/O | ||||||||||||||
| NN | None (Remote Sensor) | ||||||||||||||
| Transmitter Wiring Terminal | 1 | M4 Screw-type | |||||||||||||
| 2 | Clamp Type | ||||||||||||||
| N | None (Remote Sensor) | ||||||||||||||
| Display | 1 | With Display (English, Multi-language) | |||||||||||||
| 2 | With Display (English, Chinese) | ||||||||||||||
| N | Without Display/Remote Sensor | ||||||||||||||
| Optional codes | /Optional codes | ||||||||||||||
4. Model selection of General-purpose, Submersible, Explosion protection, Wafer, Flange (500 to 1800 mm/20 to 72 in.)
| Model | Suffix Codes | Description | |||||||||||
| AXW500 | Magnetic Flowmeter (500 mm (20 in.)) | ||||||||||||
| AXW600 | Magnetic Flowmeter (600 mm (24 in.)) | ||||||||||||
| AXW700 | Magnetic Flowmeter (700 mm (28 in.)) | ||||||||||||
| AXW800 | Magnetic Flowmeter (800 mm (32 in.)) | ||||||||||||
| AXW900 | Magnetic Flowmeter (900 mm (36 in.)) | ||||||||||||
| AXW10L | Magnetic Flowmeter (1000 mm (40 in.)) | ||||||||||||
| AXW12L | Magnetic Flowmeter (1200 mm (48 in.)) | ||||||||||||
| AXW14L | Magnetic Flowmeter (1400 mm (56 in.)) | ||||||||||||
| AXW16L | Magnetic Flowmeter (1600 mm (64 in.)) | ||||||||||||
| AXW18L | Magnetic Flowmeter (1800 mm (72 in.)) | ||||||||||||
| Use | G | General-purpose | |||||||||||
| W | Submersible type | ||||||||||||
| Converter, Communication and I/O | -# | #: D, H, K Integral Flowmeter with 4 to 20 mA DC Output BRAIN and I/O | |||||||||||
| -# | #: E, J, L Integral Flowmeter with 4 to 20 mA DC Output HART 7 and I/O | ||||||||||||
| -# | #: M, P Integral Type, Modbus Communication | ||||||||||||
| -N | Remote Sensor for Combined Use with AXFA11 | ||||||||||||
| -W | Remote Sensor (for AXW4A) | ||||||||||||
| Power Supply | 1 | 100-240 V AC / 100-120 V DC | |||||||||||
| 2 | 24 V AC / DC | ||||||||||||
| N | None (Remote Sensor) | ||||||||||||
| Lining | F | PTFE Lining | |||||||||||
| U | Polyurethane Rubber Lining | ||||||||||||
| H | Natural Hard Rubber Lining | ||||||||||||
| D | Natural Soft Rubber Lining | ||||||||||||
| Electrode | L | Stainless Steel 316L | |||||||||||
| H | Nickel Alloy | ||||||||||||
| Electrode Structure | 1 | Non-replaceable | |||||||||||
| Grounding Device | N | None | |||||||||||
| Process Connection | -CA1 | ASME B16.5/16.47 Class 150 Flange (Carbon Steel) | |||||||||||
| -CB1 | AWWA C207 Class D Flange (Carbon Steel) | ||||||||||||
| -CEJ | EN1092-1 PN6 Flange (Carbon Steel) | ||||||||||||
| -CEK | EN1092-1 PN10 Flange (Carbon Steel) | ||||||||||||
| -CE1 | EN1092-1 PN10 Flange (Carbon Steel) | ||||||||||||
| -CE2 | EN1092-1 PN16 Flange (Carbon Steel) | ||||||||||||
| -CJ1 | JIS B2220 10K Flange (Carbon Steel) | ||||||||||||
| -CS1 | AS2129 Table D Flange (Carbon Steel) | ||||||||||||
| -CS2 | AS2129 Table E Flange (Carbon Steel) | ||||||||||||
| -CT1 | AS4087 PN16 Flange (Carbon Steel) | ||||||||||||
| Lay Length | N | Standard | |||||||||||
| Electrical Connection | -0 | JIS G1/2 female | |||||||||||
| -2 | ANSI 1/2 NPT female | ||||||||||||
| -4 | ISO M20 x 1.5 female | ||||||||||||
| Indicator | 1 | With Indicator (English, Multi-language | |||||||||||
| 2 | With Indicator (English, Chinese) | ||||||||||||
| N | Without Indicator / Remote Sensor | ||||||||||||
| Calibration | B | Standard | |||||||||||
| Optional codes | /Optional codes | ||||||||||||
5. Model selection of General-purpose, Explosion protection. Remote Transmitter
| Model | Suffix Codes | Description | |||||||
| AXW4A | Magnetic Flowmeter Remote Transmitter | ||||||||
| Use | -G | General-purpose | |||||||
| -C | Explosion Protection | ||||||||
| Explosion
Protection |
000 | Non Explosion Protection Approval | |||||||
| KF2 | ATEX Flameproof | ||||||||
| SF2 | IECEx Flameproof | ||||||||
| Housing and Coating | 1 | Standard Material with Standard Coating | |||||||
| 2 | Standard Material with Rugged Coating | ||||||||
| Cable Entry | 0 | JIS G1/2 Female | |||||||
| 2 | ASME 1/2 NPT Female | ||||||||
| 4 | ISO M20×1.5 Female | ||||||||
| Power Supply | 1 | 100-240 V AC / 100-120 V DC | |||||||
| 2 | 24 V AC / DC | ||||||||
| Communication and I/O | D# | #: A, B, C, D, E, F, G, H, J, K, BRAIN and I/O | |||||||
| J# | #: A, B, C, D, E, F, G, H, J, K, HART 7 and I/O | ||||||||
| M# | #: 0, 2, 6, Modbus and I/O | ||||||||
| NN | None (Remote Sensor) | ||||||||
| Transmitter Wiring Terminal | 1 | M4 Screw-type | |||||||
| 2 | Clamp Type | ||||||||
| Display | 1 | With Display (English, Multi-language) | |||||||
| 2 | With Display (English, Chinese) | ||||||||
| N | Without Display/Remote Sensor | ||||||||
| Optional codes | /Optional codes | ||||||||
6. Model selection of Signal Cable for Remote Transmitter
| Model | Suffix Codes | Description | |||||||
| AX01C | Magnetic Flowmeter Signal Cable | ||||||||
| Cable Finish and
Length |
–A### | Unfinished, Cable length ### m, Set of Finishing Parts for M4 Screws | |||||||
| -C### | Finished for AXG4A, Cable Length ### m | ||||||||
| -D### | Finished for AXFA11, Cable Length ### m | ||||||||
| Finishing Parts | /C# | Finishing Parts (# sets) | |||||||
